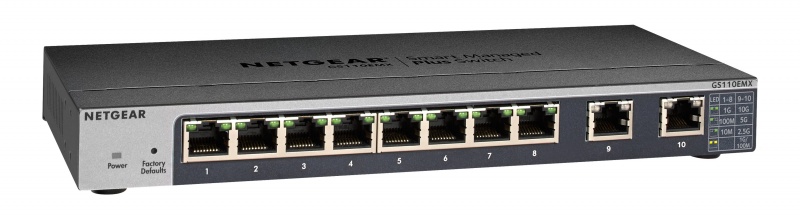

NETGEAR GS110EMX
8-Port Gigabit Ethernet Smart Managed Plus Switch with 2-Port 10G/Multi-Gig Uplinks

NETGEAR GS110EMX

Netgear Products
NETGEAR Smart Switches
GS110EMX 8-Port Gigabit Ethernet Smart Managed Plus Switch with 2-Port 10G/Multi-Gig Uplinks
#GS110EMX-100AUS
Our Price: Request a Quote

More pricing below, click here!

Please Note: All Prices are Inclusive of GST

Overview:

Unlock the Potential of your 10G/Multi-Gig devices

The GS110EMX and GS110MX come with 8 Gigabit Ethernet ports and 2 uplink 10-Gigabit/Multi-Gigabit (5-speed) ports that provide either 100 Megabit, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity.

The two uplink ports automatically detects which speed is needed by the connected device and provides the adequate speed. Moreover these two Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.

The GS110MX and GS110EMX offer flexible mounting options - they can be mounted in a rack, on a wall or can be used as a desktop switch. Moreover the compact and fanless design make the GS110MX and GS110EMX ideal for any home or business environment.

Highlights:

  • Multi-Speed Technology Support
    Expand your network instantly, and give your devices either 100M, 1G, 2.5G, 5G or 10G automatically
  • 10 Gigabit Uplinks
    No Network Bottlenecks thanks to the 2 10-Gigabit/Multi-Gigabit Uplinks
  • Flexible Mounting
    Rackmount, Wall-Mount or Desktop
  • Small Form Factor
    Compact Design to fit in any small cabinet or wiring panel
  • High Quality and Reliable Performance
    Durable metal case and long product life(shown by MTBF numbers)
  • Silent Switches
    Fanless Quiet Operation
  • Industry leading warranty
    • LIFETIME 24/7 Technical Support
    • LIFETIME Hardware Warranty*

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies - not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorised reseller.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

Features and Benefits:

Hardware Features: Benefits:
Compact form factor with fanless design Adapts to your needs and configuration in any environment, even noise-sensitive (in a classroom, in a conference room, in a doctor’s office…)
Flexible Mounting Options Rack, Desktop or Wall-Mount to be used in any environment.
56 Gbps non-blocking switching architecture Get all the connectivity you need to your devices without congestion.
5-Speed Networking Automatically detects which speed is needed by the connected device and provides the adequate speed (100M/1G/2.5G/5G/10G) to connect all your devices with one switch.
Software Features: Benefits:
Port-based and 802.1Q-based VLANs Segment network into smaller groups for more secure and efficient use of network resources.
Comprehensive QoS features:
  • Port-based or 802.1p-based prioritization
  • Layer 3-based (DSCP) prioritization
  • Port-based ingress and egress rate limiting
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. Ingress and egress rate limiting allows for bandwidth shaping for mitigating network resources constraints or for optimizing guest access bandwidth on the network.
IGMP Snooping For improved network efficiency on delivering multicast traffic. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
Port trunking / Link Aggregation Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s) using Static Manual LAGs or LACP.
Voice VLAN The feature enables auto assignment of voice traffic (based on OUI) to a special VLAN (AKA Voice VLAN); allowing the assignment of special QoS parameters to that traffic, giving it high priority services. Port has to be MANUALLY assigned to be a member of the Voice VLAN.
Loop detection and auto DoS prevention Detect accidental network loops and protect against DoS attacks.
Port Mirroring For better and quicker network diagnostics and troubleshooting.
Energy Efficient Ethernet (IEEE 802.3az) For maximum power savings and reduced energy costs.
Cable Test Easily identify bad Ethernet cables.

At a Glance:

Hardware at a glance
Model name Form-Factor 10M/ 100M/1G Copper Ports 10-Gig/Multi-Gig Copper Ports LED's Case Material Fans Power Supply
GS110MX Rackmount/Desktop/ Wall-Mount 8 2 Power, Port Link/Speed/Activity Metal Fanless External
GS110EMX Rackmount/Desktop/ Wall-Mount 8 2 Power, Port Link/Speed/Activity Metal Fanless External

Software at a glance
Model name Management VLANs IGMP EEE (802.3az) Auto-EEE QoS Port Trunking Jumbo Frame Support
GS110MX Unmanaged No N/A Yes N/A No Yes
GS110EMX Web Managed Port-Based/ 802.1Q IGMP Snooping Yes Port-Based IEEE 802.1p Based Static LAG and LACP Yes

Performance at a glance
Model Name Fabric Packet Buffer Latency
(Max Connection Speed)
MAC Address Table Priority Queues Multicast IGMP Group Packet Forwarding Rate (64 byte) Jumbo Frames (bytes)
GS110MX 56 Gbps line-rate 128KB 10Gbps: <3µs
1000Mbps: <4µs
100Mbps: <7µs
16K Entries (dynamic) 8 (WRR) N/A 41.664Mfps up to 10240
GS110EMX 56 Gbps line-rate 128KB 10Gbps: <3µs
1000Mbps: <4µs
100Mbps: <7µs
16K Entries (dynamic) 8 (WRR) 128 41.664Mfps up to 10240

Model Comparison:

Technical Specifications
Models: GS110MX GS110EMX
Product Specifications
Gigabit ports 8 8
100M/1G/2.5G/5G/10G RJ-45 copper ports 2 2
Form Factor Desktop/Rackmount/Wallmount Desktop/Rackmount/Wallmount
Performance Specifications
Bandwidth 56 Gbps 56 Gbps
Priority queues 8 8
Priority queuing Weighted Round Robin (WRR)
MAC Address database size (48-bit MAC addresses) 16K 16K
Multicast groups N/A 128
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) 41.664Mfps 41.664Mfps
Speed / Latency 10Gbps: < 3µs
100Mbps: <7µs
1000Mbps: <4µs
10Gbps: < 3µs
100Mbps: <7µs
1000Mbps: <4µs
Jumbo frame support Up to 10240 bytes Up to 10240 bytes
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 0 dBA 0 dBA
Power/Energy Efficency
Energy-Efficient Ethernet Yes Yes
Max power (worst case, all ports used, line-rate traffic) (Watts) 13.2 15.6
Quality of Service (QoS)
Models: GS110MX GS110EMX
802.1p-based QoS/CoS Supported Yes Yes
Port-based rate limiting N/A Ingress and egress
Port-based QoS N/A Yes
IEEE 802.1p COS Yes Yes
IPv4 DSCP Yes Yes
Pre-Defined Rate Limiting Rates N/A 1/5/10/50/100/500 Mbit/s
Pre-Defined Port Priority Queues 8 8
Weighted Round Robin (WRR) Yes Yes
Strict priority queue technology N/A No
Voice VLAN N/A Yes
L2 Services - VLANS
VLAN (# Supported) N/A 64
IEEE 802.1Q VLAN Tagging N/A Yes
Port-based VLAN N/A Yes
L2 Services - Availability
Broadcast, multicast, unknown unicast storm control N/A Yes
Static Manual LAGs (Port Trunking) N/A Yes
LACP N/A Yes
IEEE 802.3x (full duplex and flow control) Yes Yes
L2 Services - Multicast Filtering
Models: GS110MX GS110EMX
IGMP snooping (v1, v2, and v3) N/A Yes
IGMP snooping querier N/A No
Block unknown multicast N/A Yes
Static multicast router port N/A Yes
L3 Services - DHCP
DHCP client N/A Yes
Link Aggregation
Static Manual LAGs (Port Trunking) N/A Yes
# of Static LAGs / # of members in each LAG N/A 5 LAGs with max 9 members in each LAG
LEDs
Per port Speed, Link, Activity Speed, Link, Activity
Per device Power Power
Physical Specifications
Models: GS110MX GS110EMX
Dimensions 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in) 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in)
Weight 0.74 kg (1.63 lbs) 0.75 kg (1.65 lbs)
Power Consumption
Power Supply MX: External Power Adapter 12V 1.5A
EMX: External Power Adapter12V 2.5A
Max power (worst case, all ports used, line-rate traffic) (Watts) 13.2v 15.6
Min power (link-down standby) (Watts) MX: 4.8
EMX: 6.6
MX: 4.8
EMX: 6.6
Heat Dissipation (max and min) (BTU/hr) Max: 45.14 BTU/hr
Min: 16.42BTU/hr
Max: 53.35 BTU/hr
Min: 22.57 BTU/hr
Fan(s) Fanless Fanless
Environmental Specifications
Operating Temperature 0° to 40°C (32° to 104°F)
Operating Humidity 90% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature -20° to 70°C (- 4° to 158°F)
Storage Humidity 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
  • 47 CFR FCC Part 15, SubpartB, Class B
  • ICES-003:2016 Issue 6, Class B
  • ANSI C63.4:2014
  • EN 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B
  • EN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B
  • EN 61000-3-2:2014
  • EN 61000-3-3:2013
  • EN 55024:2010 +A1:2015
  • AS/NZS CISPR 32:2015, Class B
  • VCCI-CISPR 32:2016, Class B
  • Russia EAC mark
  • Korea KC mark
  • CNS 13438
Electromagnetic Compliance (Class A or B) Class B
Safety
Certifications
  • CB mark, commercial
  • UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07
  • EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
  • IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
  • AS/NZS 60950.1:2015
  • Russia EAC mark (GS110MX only)
Warranty and Support
ProSAFE Lifetime Warranty Included, Lifetime*
Lifetime 24x7 Online Technical Support* Included, Lifetime*
Lifetime Next-Business-Day (NBD) Replacement Included, Lifetime*
ProSUPPORT OnCall 24x7, Category 2** Service Packs Category 2:
PMB0312 (1 Year.)
PMB0332 (3 Years.)
PMB0352 (5 Years.)
Package Contents
All Models
  • GS110MX or GS110EMX 8-port Gigabit Switch with 2-port 10-Gigabit/Multi-Gigabit Uplinks
  • AC power adapter (localized to country of sale)
  • Rack-mounting kit
  • Wall-mounting kit
  • Rubber foot
  • Quick install guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies - not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorised reseller.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

Network Diagram:

GS110MX/GS110EMX in a Business Environment

GS110MX/GS110EMX in a Business Environment

Cables and Speeds

The following table describes the network cables that you can use for the switch connections and the speeds that the cables can support, up to 100 meters (328 feet).

Speed Cable Type
100 Mbps Category 5 (Cat 5) or higher rated
1 Gbps, 2.5 Gbps, or 5 Gbps Category 5e (Cat 5e) or higher rated
10 Gbps Category 6A (Cat 6A) or higher rated

Note: For speeds of 10 Gbps, if the cable length is shorter than 55 meters (180 feet), you can use a Category 6 (Cat 6) cable.

Why the NETGEAR GS110MX/GS110EMX Switches are ideal for SMB

  1. Remove any Network Bottleneck with the 10-Gigabit/Multi-Gigabit Uplinks
  2. 5-Speed auto-adapt intelligent Networking (100M,1G,2.5G,5G,10G)
  3. Small and silent compact form factor for quiet operation - Adapts to your needs and configuration in any environment
  4. ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert
  5. Energy efficient switches that automatically adjust power consumption according to Energy-Efficient Ethernet standard

Documentation:

Download the NETGEAR 8-port Gigabit Switches with 10-Gigabit/Multi-Gigabit Uplinks Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
