NETGEAR WN203
ProSafe Business Class 802.11n Wireless Access Point

NETGEAR WN203

NETGEAR Products
NETGEAR Business Wireless
ProSAFE WN203 Business Class 802.11n Wireless Access Point
#WN203-100AUS
List Price: $179.00
Our Price: Request a Quote

More pricing below, click here!

Please Note: All Prices are Inclusive of GST

NETGEAR ProSafe

Overview:

The NETGEAR ProSAFE WN203 Wireless-N Access Point provides standalone configuration with easy setup for a reliable, high-performance and affordable 802.11n wireless solution for small or medium businesses. Power over Ethernet enables flexible deployment and multiple SSID provide enhanced security.

High performance and superior coverage

  • Up to 15x the speed of 802.11g networks
  • Up to 10x the coverage of legacy 802.11g networks

Comprehensive security

  • Supports wireless security features (WPA, WPA2)
  • Enterprise-grade wireless security with 802.1x and Radius servers

Ease of deployment

  • Power over Ethernet (PoE) support to eliminate external power adapters
  • Ease of AP placement for optimal locations (desktop, wall, or ceiling mount)
  • Mounting slots available for wall or ceiling placement

Business-grade and feature-rich

  • Multiple SSID for traffic segmentation
  • Layer 2 VLAN for better security

Industry-leading warranty

  • NETGEAR ProSAFE Lifetime Hardware Warranty

Specifications:

NETGEAR WN203 Specifications
Standards
  • IEEE 802.11n 2.0 specification
  • IEEE 802.11g
  • IEEE 802.11b
  • Frequency Band: 2.4 G Hz
  • 802.11n Transmit x Receive: 2x2
  • Maximum Theoretical Throughpu: 300 Mbps
  • Maximum Transmit Power: 22 dBm @ 802.11b (1 Mbps); 21 dBm @ 802.11g (6 Mbps); 21 dBm @ 802.11n (MCS0)
Physical Specifications
  • Dimensions: 173 x 133 x 35 mm (6.8 x 5.3 x 1.4 in)
  • Weight: 240 g (0.5 lb)
  • Mounting: desktop, wall, and ceiling
Physical Interfaces
  • One (1) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink ™ (Auto MDI-X) with IEEE 802.3af
  • Power over Ethernet (PoE) support
  • Two (2) reverse SMA antenna connectors
  • LEDs: Power, test, LAN, wireless
  • Default Reset
Power
  • Country-specific plug: 12 watt, 12V, 1 Amp power adapter
  • Power over Ethernet
  • Power consumption: 4.0W
Environmental Conditions
  • Operating Temperature: Minimum (C/F) 0/32; Maximum (C/F) 45/113
  • Storage Temperature: Minimum (C/F) -20/-4; Maximum (C/F) 70/158
  • Operating Relative Humidity: Minimum 10%; Maximum 90%
  • Storage Humidity: Minimum 5%; Maximum 95%
  • MTBF: @ 25 degrees C > 375,000 hours; @ 50 degrees C >125,000 hours
Security
  • Wired Equivalent Privacy (WEP) Encryption
  • WiFi Protected Access Pre-shared Key (WPA-PSK, WPA2-PSK)
  • Rogue AP detection
  • IEEE 802.1x Authentication
  • MAC Address filtering
  • 8 BSSID
  • IEEE 802.1x Radius (EAP TLS, TTLS, PEAP)
  • Wireless access control to identify authorized wireless devices
Network Management
  • Deployment options: Standalone and Web UI
  • SSL
  • SNMP v1, v2 with 802.11 standard and proprietary MIBs
  • Remote configuration and management through Web browser, or SNMP
Wireless
  • IEEE 802.11 b/g/n 300 Mbps † Wireless Access Point
  • Antenna: 3 dBi (internal) with additional (2) 2.4 GHz detachable antenna connectors
Advanced Wireless Features
  • WDS Point-to-point wireless bridge mode
  • WDS Point-to-multipoint wireless bridge mode
  • WDS Repeater mode
  • Adjustable Transmit Power Control (TPC)
Package Contents
  • ProSAFE Business Class 802.11n Wireless Access Point (WN203)
  • Ethernet cable
  • Desktop and wall-mounting kits
  • Installation guide
  • Resource CD
  • Power adapter, localized to country of sale
  • Warranty/support information card

Deployment:

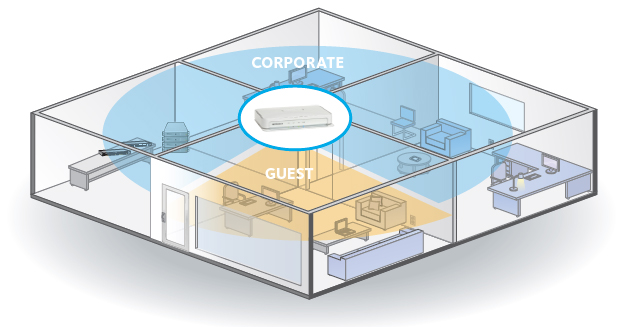

Standalone AP Deployment

Standalone AP Deployment

The NETGEAR ProSAFE line of business networking products offers a wide array of easy-to-use, professional-grade switching, wireless, software and security solutions. Backed by a lifetime hardware warranty for the original purchaser, ProSAFE products provide an abundance of intelligent, innovative and practical features, addressing the unique requirements of business networks.

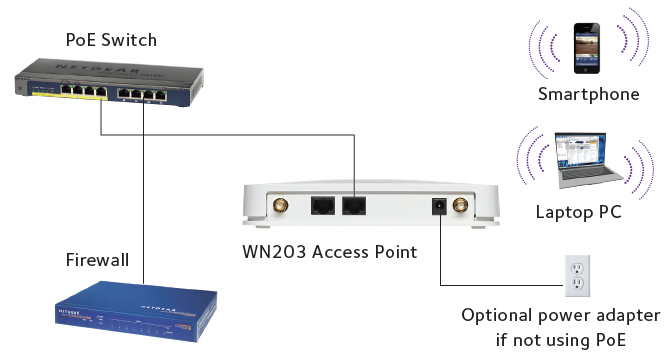

WN203 Deployment

Documentation:

Download the NETGEAR WN203 Datasheet (PDF).
