NETGEAR WAX204
Essentials WiFi 6 AX1800 Dual Band Access Point


NETGEAR WAX204

Netgear Products
Wireless 802.11ax Access Points
NETGEAR Essentials WiFi 6 AX1800 Access Point
#WAX204-100NAS
Our Price: Request a Quote

More pricing below, click here!

Please Note: All Prices are Inclusive of GST

Overview:

WiFi 6 high performance wireless connectivity for Small Office and Home Office (SOHO) deployments

The NETGEAR WiFi 6 AX1800 Dual Band Wireless Access Point (AP) delivers 802.11ax high performance wireless connectivity for Small Office and Home Office (SOHO) deployments and supports dual band concurrent WiFi 6 operations at 2.4GHz and 5GHz with a combined throughput of 1.8Gbps (600Mbps at 2.4GHz and 1200Mbps at 5GHz). The WAX204 WiFi 6 Access Point provides standalone configuration with easy setup for a reliable, 802.11ax high performance, and cost effective wireless solution.

  • Simple setup in minutes with intuitive Graphical User Interface (GUI)
  • Comprehensive monitoring and management through a local web portal user interface
  • WiFi 6 802.11ax technology
  • Dual band concurrent operation between 2.4GHz and 5GHz frequency ranges
  • Maximize coverage for optimal deployment for SOHO
  • Supports wireless security features (WPA, WPA2 and WPA3)
  • MAC based Access Control List to protect against intruders
  • Block unwanted sites and services
  • Support latest WiFi 6 802.11ax wireless clients to achieve maximum speed
  • Backward compatible to allow legacy devices to connect at their fastest speed

Features:

Peformance

  • Latest Business WiFi
    Upgrade to WIFi 6 with speeds of up to 1.8 Gbps for faster streaming, downloading, video conferencing, and more.
  • Budget Friendly Solution
    The perfect WiFi 6 business solution for your home office, retail shop, conference room, or small business.
  • Router Functionality
    Eliminate the need for an additional router with this 2-in-1 WiFi solution.
  • Connect More Wired Devices
    5 Ethernet ports for wired connection to printer, laptop, and more.

Security

  • 3 Wireless Networks (SSIDS)
    Separate and secure networks for admin, guests, and employees.

Ease of Use

  • Easy DIY Set Up
    Easy and intuitive UI, no need for professional installation or IT equipment cost.

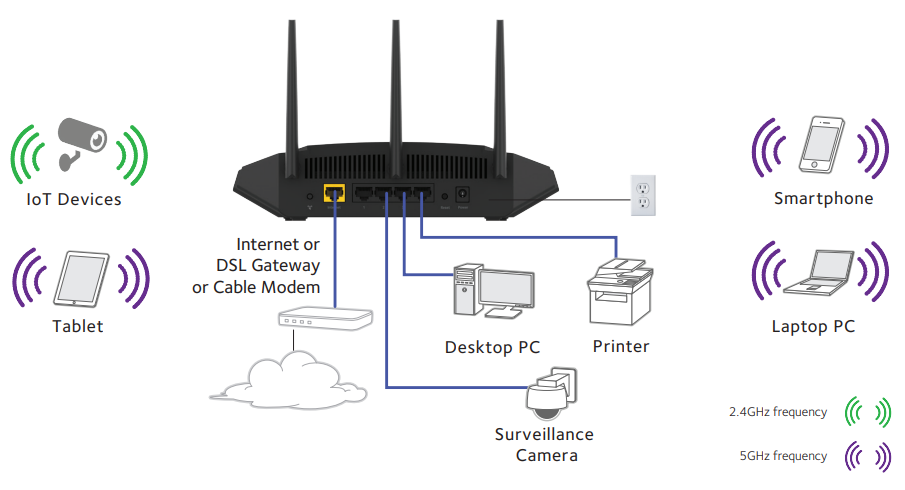

Connection Diagram:

Sample Deployment Use Cases

Sample Deployment Use Cases

Example Application

Example Application

WiFi 6:

WiFi 6 for business and home office

NETGEAR has been at the forefront of innovation and cutting-edge solution for more than 20 years, providing innovative and ground-breaking network solutions which include a suite of advanced WiFi 6 products - giving you access to the most advanced WiFi on the planet.


WiFi 6 overcomes these challenges

  • Coverage and range, especially through walls in blind spots
  • Need for faster and easier set up
  • Network and per device speed, especially with more devices
  • Demand for security and access control
  • Need for smooth configuration and firmware updates

WiFi 6 for Business

Why are businesses adopting WiFi 6?

  • Best WiFi Speed - 70% more throughput than WiFi 5
  • Connect More Devices - optimized speed even in high density areas
  • Improved Coverage
  • Future-Proofing
  • Compatibility
  • Battery Efficiency
  • Seamless Roaming
  • Faster Backbone with 2.5G - Multi-gig networking and connectivity
  • High Density IoT
  • Safer Networks
WiFi 6 for Business

Remote WiFi 6 Management

Most NETGEAR WiFi 6 business access points include NETGEAR Insight, the award-winning remote cloud management solution for easy installation, monitoring, and management from anywhere.

NETGEAR Insight is an industry first in network management, providing easy plug-and-play setup and management. Its cloud portal can be accessed via an intuitive web interface or the Insight mobile app. Insight offers a wide variety of configuration options for the most basic networks to multi-tenancy and multi-roles.

NETGEAR Insight enables easy configuration, monitoring, and management of your wireless access points together with Insight-managed switches and storage. Wireless management features include: Instant WiFi for automatic wireless configuration to limit interferences, frequency band selection, VLAN creation and association with SSID, WiFi security configuration, visibility into WiFi clients, reporting, and many more.

Use cases

Who is upgrading to WiFi 6?

  • Sharing a WiFi connection with the rest of the family as people are working from home, video calling or downloading large files can slow everyone down. WiFi 6 is optimized for concurrent users.
  • As medicine moves toward more innovative technologies for imaging, record storage, and telehealth, it requires more bandwidth. Upgrading to WiFi 6 helps ease high demand and provide efficiency.
  • Older, legacy WiFi systems have slow bandwidth lack device capacity and less secure connections. WiFi 6 can meet growing demand for connectivity across all the technology and devices the industry depends on.
  • As wireless handheld Point of Sale devices increase in use so does the need for suffcinet bandwidth and total site coverage. WiFi 6 can meet those growing demands.
  • Libraries, city halls, police offices and the public sector in general are becoming more technologically advanced and reliant on WiFi and need the bandwidth capacity and efficiency it offers.
  • The increase in video streaming, online with WiFi 6 greatly improve student's and teacher's educational experiences.
  • From AI assembly line robots to autonomous delivery trucks, most or all new machinery and loT will require high bandwidth and capacity.
  • Finance companies need high bandwidth and zero-delay streaming to meet the needs of daily stock market traders and demanding finance apps. WiFi 6 can keep up with these demand.
  • Houses of worship need great network conncetivity to make sure everything runs smoothly for the team and improve the congregation's experince. Reliability, simplicity and affordability are high priorities. WiFi 6 checks all those boxes.


The WiFi 6 Difference

Increased speed, coverage, and capacity for today's WiFi demands

  • Speed
    Up to 70% faster speeds on both bands
  • Coverage
    Up to 50% more coverage, with no dead zones
  • Device Capacity
    More simultaneous users, with high WiFi quality for everyone
WiFi 6 Difference

Specifications:


WAX204 Specifications
Physical Characteristics
Power Supply Country-specific plug: 12V/1.5A (18W)
1.5 Amp power adapter
Physical Specifications
Dimensions (W x H x L) 9.27 x 7.26 x 2.25in (236 x 184 x 57mm)
Weight 1.08lb (490g)
Mounting options Desktop
Network Interfaces
Ethernet Ports Five (5) 10/100/1000BASE-T Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X)
Buttons
Hardware Buttons Default Reset, WPS
LEDs 5 LEDs (Power, Internet, Wireless, LAN, WPS)
Environmental Specifications
Operating Temperature 0° to 40°C (32°F to 104°F)
Storage Temperature -20° to 70°C (-4°F to 158°F)
Operating Relative Humidity 10-90%
Storage Humidity 5-95%
MTBF @ 25°C > 1,970,213.9 hours
@ 45°C > 780,140.0 hours
Safety Certification CB IEC60950-1, CE LVD EN62368-1
RF Characteristics
Standards IEEE 802.11ac
IEEE 802.11n 2.0
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
IEEE 802.11ax
Frequency Band 2.4GHz and 5GHz concurrent operation
Maximum Theoretical Throughput 600Mbps (2.4GHz)
1,200Mbps (5.0GHz)
Maximum Number of Clients 256 (2.4GHz 128, 5.0GHz 128)
Network Management
Deployment options Standalone
Web UI
Access Point Antenna: 3dBi (external)
Security WiFi Protected Access (WPA/WPA2/WPA3)
MAC Address filtering
3 SSIDs
MAC ACL Yes
VPN Pass-through Yes
802.11e WMM (Wireless multimedia mode) for QoS
Simultaneous Bridge/Client Association Yes
Warranty and Support
Hardware Limited Warranty 3 years
Next-Business-Day (NBD) Replacement Yes
Technical support (online, phone) 90 days free from date of purchase*
ProSUPPORT OnCall 24x7 Service Packs** Category S2
PMB0S12 (1 year)
PMB0S32 (2 year)
PMB0S52 (5 year)
Package Contents
WAX204 WiFi 6 AX1800 Dual Band Wireless AP (WAX204)
Ethernet cable
Installation guide
Power adapter, localized to country of sale
Warranty/support information card

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller, and covers unmodifi ed hardware, fans and internal power supplies - not software or external power supplies, and requires product registration using the Insight mobile app or Insight Cloud portal within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.

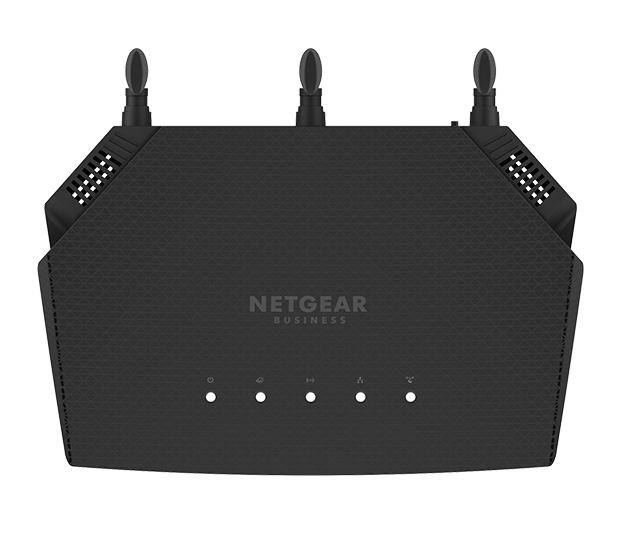

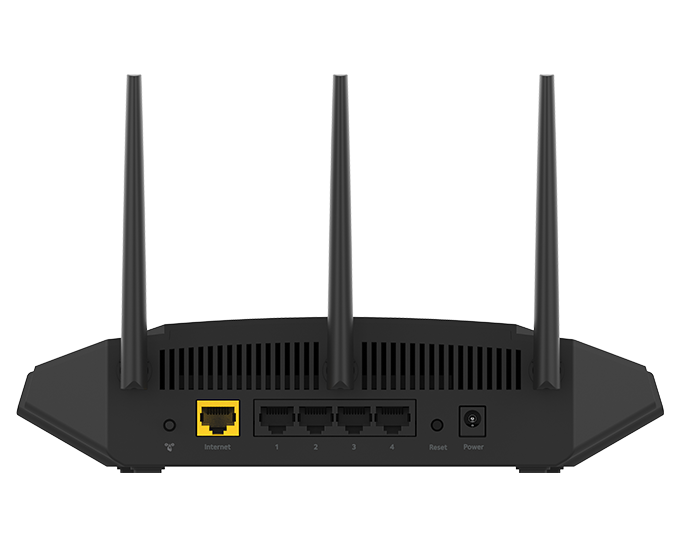

Views:



Documentation:

Download the NETGEAR WAX204 Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
