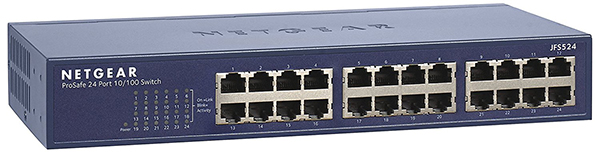

NETGEAR JFS524
ProSafe 24-Port Fast Ethernet Unmanaged Switch
Sorry, this product is no longer available, replaced by the GS324-200NAS.
Overview:
The NETGEAR Fast Ethernet Unmanaged Switches series are purposely designed, well built and rigorously tested for small and medium-sized networks where reliability and performance are the keys while Plug-N-Play connectivity and operational cost savings are the must-haves. With a 1U form factor, they can be placed on the desktop or rack-mounted with the included rack-mount kit for professional installation.
The JFS516 and JFS524 come with 16 and 24 ports 10/100Mbps copper ports respectively. They offer energy efficiency features and are compliant with the IEEE 802.3az standard. Both models are fanless for silent operation, business class rugged, and come with a lifetime warranty.
Highlights
Instant Network Connectivity for Your Small Business and Home Office
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- Up to 24 ports, each delivering up to 200Mbps of dedicated network bandwdith to servers, PCs and newtork devices
- Energy Efficient Ethernet (IEEE802.3az) for optimized power saving
- Rugged metal case and fanless design for reliable and silent operation
Business-Class, Built with Performance and Reliability
- Plug-and-play-begins working as soon as it’s powered on
- Auto MDI/MDI-X automatically adjusts for straight-through or crossover cables
- Auto Sensing and IEEE 802.3 Nway Auto Negotiation
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS for traffic prioritization
- Intelligent LEDs for port link status and activity
- Compact size for the desktop or for mounting in a standard 19 -inch rack
- Backed by a NETGEAR Lifetime Warranty
Specifications:
| Specifications | JFS516 | JFS524 |
|---|---|---|
| Features | ||
| Ethernet Speed | 10/100Mbps Fast Ethernet | 10/100Mbps Fast Ethernet |
| Number of ports | 16 | 24 |
| Short cable power saving | Yes | Yes |
| Energy Efficient Ethernet Support IEEE 802.3az | Yes | Yes |
| Queue WRR Ratio | 8:4:2:1 | 8:4:2:1 |
| MAC Table Size | 8K | 8K |
| Packet buffer Size | 2Mb | 2Mb |
| Jumbo Frames | 2KB | 2KB |
| IEEE 802.1p QoS | Yes | Yes |
| MTBF (hours) | 2,940,540 | 2,940,540 |
| IEE Network Protocols | ||
| IEE Network Protocols |
|
|
| Physical Specifications | ||
| Weight (kg) | 0.92 (2.03 lbs) | 1.00 (2.20 lbs) |
| Dimensions (WxDxH) | 280 x 126 x 44 mm | 280 x 126 x 44 mm |
| Power Consumption (When all ports used, line-rate traffic) | ||
| Worst case, all ports used, line-rate traffic | 2.7W | 4.0W |
| LEDs | ||
| Per port | Speed, Link, Activity | |
| Per device | Power | |
| Environmental Conditions | ||
| Operating Temperature | 32° to 122°F (0° to 50°C) | |
| Operating Humidity | 90% maximum relative humidity, non-condensing | |
| Operating Altitude | 10,000 ft (3,000 m) maximum | |
| Storage Temperature | - 4° to 158°F (-20° to 70°C) | |
| Storage Humidity | 95% maximum relative humidity, non-condensing | |
| Storage Altitude | 10,000 ft (3,000 m) maximum | |
| Certifications | ||
| Electromagnetic Emissions and Immunity |
|
|
| Safety |
|
|
| Warranty and Support |
|
|
| ProSUPPORT Service Packs Available |
|
|
| Package Content |
|
|
*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies-not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. 2-year warranty on power adapters on applicable models. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorised reseller.
**The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business day hardware replacement.
Diagram:
The NETGEAR ProSAFE Fast Ethernet Switch, the right-sized solution with the best value
- Fast Ethernet for the best value at the most affordable price
- IEEE 802.1p QoS for traffic prioritization
- Fanless design for quiet operation
- Energy Efficient Ethernet (EEE) for optimized power and cost savings
- Lifetime warranty for peace-of-mind
Documentation:
Download the NETGEAR JFS516v2 and JFS524v2 Datasheet (PDF).
