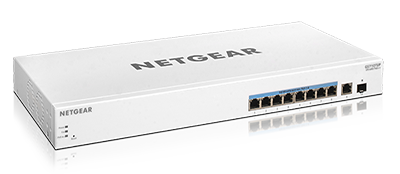

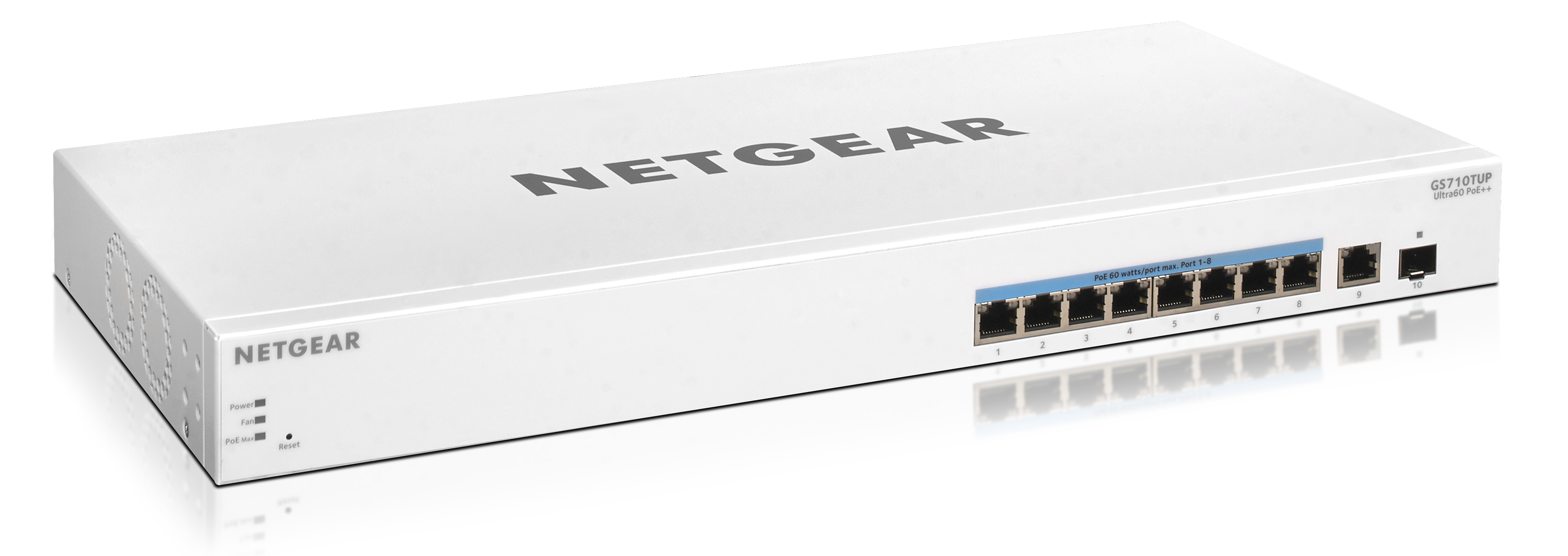

Netgear GS710TUP-100NAS
10-Port Gigabit Ethernet Ultra60 PoE++ Smart Managed Pro Rackmount Switch with 1 SFP and 1 Copper Uplink and optional Insight Remote/Cloud Management (480W)



GS710TUP-100NAS



Sorry, this product is no longer available, please contact us for a replacement.

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

GS710TUP-100NAS Product Video

The first Cloud Manageable PoE++ switch with Uninterrupted Ultra60 60W PoE++ power

As the leader in PoE switching, NETGEAR now brings to market the first Cloud Manageable PoE++ switch with Uninterrupted Ultra60 60W PoE++ power to your business together with NETGEAR's innovation "Uninterrupted PoE" for constant power to the devices even during switch firmware updates or reboots.

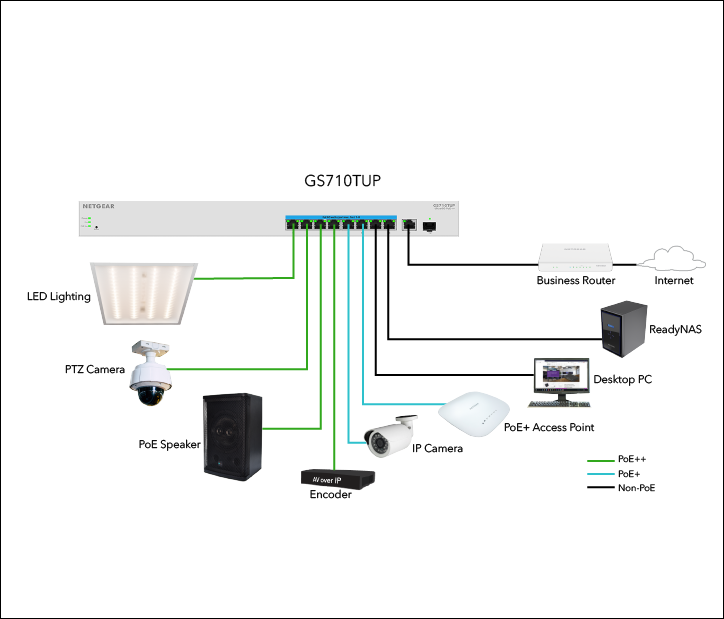

With IoT (Internet of Things) continuously introducing wired devices for smart home and smart building automation systems, the 802.3bt PoE standard is needed to support those devices that require greater power - power that the 802.3at standard (30W per port) cannot support.



What you get with Ultra60 PoE++ technology

With the new 10-Port Smart Managed Pro Switches, you get powerful PoE++ installations with PoE budgets up to 480W, a compact size, uninterrupted PoE, and reliable performance, all at affordable prices. Standardized to IEEEE 802.3bt, the Ultra60 PoE++ switches can deliver up to 60W of power per port, allowing the connections of higher power required devices, such as 802.11AX wireless access points, Smart building lighting, Audio Speakers and Pan-Tilt-Zoom cameras. Additionally, with the NETGEAR Insight Remote/Cloud management option, managing all the powerful PoE devices from anywhere is just one click away. Also supports pre-802.3bt (UPoE) PoE technology.

Netgear BR500 Firewall Swimlane



Netgear BR500 Discover the easiest way to protect your business

Insight Cloud Management

  • Remote monitoring and management with performance dashboards and troubleshooting features
  • Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
  • Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud Portal
  • Configurable in-app and email alerts and notifications
  • Auto-join and configure (zero-touch provisioning) for additional Insight Managed devices added to the network
  • Centralized network configuration (policies) across Insight Managed Switches, Access Points, and ReadyNAS storage for VLANs, ACLs, QoS, LAGs, etc.
  • Cloud-based network administration, monitoring, and firmware management



  • Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN
  • Advanced QoS (Quality of Service) with L2/ L3/L4 awareness and 8 priority queues
  • Essential IPv4 L3 static routing (no resiliency, no load balancing)
  • Assignment Auto-VoIP VLAN, Auto-voice VLAN, Auto-video VLAN
  • IGMP and MLD snooping
  • Advanced Security IPv6 for management, QoS and ACLD
  • HCP L2 relay
Netgar BR500 One Step Instant VPN - Remote site-to



NETGEAR Warranty

NETGEAR Smart Managed Pro switches include ProSAFE® LIFETIME Hardware Warranty*, LIFETIME Next Business Day (NBD) Replacement, LIFETIME Technical Chat online support, and 90 days free Technical Phone support.



*This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies - not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorised reseller.



Features and Benefits:

Hardware Features

Fully-integrated Cloud-manageable Devices

Require no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud Management mode through Web browser-based User Interface and go.

1000BASE-T Copper Ethernet and PoE+ and PoE++ connections

Supports 802.3bt type 3 (60W/port) devices, pre IEEE 802.3bt PoE standard/UPoE devices, as well as all 802.3at (30W/port) and 802.3af (15.4W/port) devices. Good for high-density VoIP, surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports or PoE power budget.

1000BASE-X SFP ports

One dedicated Gigabit SFP port provides a fiber uplink without sacrificing any downlink copper Gigabit Ethernet port, and across long distances. Support for Fiber and Copper modules.

Silent Acoustics (GS110TUP)

Fanless design allows for silent operation, great for deployment in noisesensitive environments.

Energy Efficient Ethernet (IEEE 802.3az)

Maximum power reduction for ongoing operation cost savings

Desktop, wall mount (VESA holes available), ceiling mount and rack mount (kit available)

Flexible deployment on desktop, wall, ceiling or other location using 100mm VESA-compliant mounts on GS110TUP. Both GS110TUP and GS710TUP support rack mount. Great for deployments of PoE-powered LED lighting or IP Cameras.

Kensington Lock Slot

Prevent theft, removal, or tampering when used for desktop deployment.
Software Features

Remote setup, management, maintenance and monitoring anywhere, anytime, from your mobile device, PC, Mac, or tablet

Locally or remotely setup, configure, manage, monitor or even troubleshoot your network from anywhere, anytime. Check network status, view dashboards for network health and activity, power cycle PoE ports, etc, and update firmware remotely. No need to be on-site, open up ports to your network, or VPN into it.

Auto-join and Configure (Zero-Touch Provisioning)

Additional Insight Managed devices added to the network automatically inherit settings and configuration.

Multi-site, Multi-network Single Pane-of-Glass View

View and configure multiple networks across multiple sites, all from one single app; NETGEAR Insight.

Comprehensive IPv6 Support for Management, ACLs and QoS

Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.

IPv4 Static Routing

A simple way to provide segmentation of the network with internal routing through the switch - reserving the router for external traffic routing only, making the entire network more efficient.

Robust security features:
  • 802.1x authentication (EAP)
  • Port-based security by locked MAC
  • ACL filtering to permit or deny traffic based on MAC and IP addresses

Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorised users.

Comprehensive QoS features:
  • Port-based or VLAN 802.1p-based prioritization
  • Layer 3-based (DSCP) prioritization
  • Port-based egress rate limiting

Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.

Uninterrupted PoE

Keep PoE power on even when the switch is updating firmware or performing a software reboot. Ideal when powering IP Cameras and lights for continuous feed and power.

Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN

Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP, H.323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams.

IGMP Snooping and MLD Snooping

Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router

Protected Ports

Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.

DHCP Snooping

Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch.

Dynamic VLAN Assignment (RADIUS)

IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.

Port Trunking/Link Aggregation (LACP)

Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s). Aggregate up to 8 ports for 8Gbps connections.

Loop Prevention and Auto-DoS Prevention

Detect and prevent (auto port shutdown) accidental network loops and protect against DoS attacks.

PoE Timer and Scheduling

Allows IT administrators to increase network security, better utilize network resources and conserve energy by scheduling or remotely controlling on/ off of PoE ports.

Port Mirroring and Cable Test

Many-to-one port mirroring for better and quicker network diagnostics and troubleshooting. Cable test easily identifies bad Ethernet cables.

Dual Firmware Images

Dual firmware images for transparent firmware updates with minimum service interruption

Firmware Updates from Cloud

Direct cloud-to-device firmware updates, initiated and/or scheduled using the Insight app, all from the palm of your hand, anytime, anywhere when using NETGEAR Insight management.

Multiple Language Local GUI

Product documentation and local-only web user interfaces are translated, giving you the ability to select your preferred language.

Specifications:

Product Number

GS710TUP

Gigabit Ethernet RJ-45 Copper ports (10M/100M/1G) - 1000BASE-T

9

PoE/PoE+ ports

8

PoE++ ports (802.3 bt Type3 60w/port)

8

Gigabit SFP (fiber) ports (100M/1G) - 1000BASE-X

1 (dedicated)

Power Supply

Internal Power Supply

Kensington Lock

Yes (rear)
LEDS

Front (per device)

Power (with Cloud Mode Indicator), PoE Max, Fan

Front (port side) (per port)

Speed/Link/Activity (left), PoE Power (right)
Unified Network Management (Discovery, Setup, Monitoring, and Management) through NETGEAR Insight Cloud Management

Discovery, setup, monitoring and management

NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser

Remote/Cloud management

Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal

Centralized network configuration (policies)

Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs

Device auto-join and configure (zero-touch provisioning

Additional Insight Managed devices added to the network automatically inherit the network configuration

Multi-site, multi-network single pane-of-glass view

Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal

Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc

Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard
Performance Specifications

CPU

500MHz single core, 128MB RAM, 32MB SPI FLASH

Packet buffer memory (Dynamically shared across only used ports)

512 KB

Forwarding modes

Store-and-forward

Bandwidth (non-blocking, full duplex)

20Gbps

Priority queues

8

Priority Queuing

Weighted Round Robin (WRR) and Strict Priority

MAC Address database size (48-bit MAC addresses)

8K

Multicast groups

256

Number of IPv4 static routes

32

Number of VLANs

64

Number of DHCP snooping bindings

256

Access Control Lists (ACLs)

100 shared for MAC, IP and IPv6 ACLs

Packet forwarding rate (64 byte packet size) (Mfps or Mpps)

14.8

1G Copper standard latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 3.859 µsec, 1518-bye: 4.063 µsec, 9216-byte: 3.789 µsec

1G Copper Uplink latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 3.887 µsec, 1518-bye: 4.087 µsec, 9216-byte: 3.820 µsec

1G SFP Fiber latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

64-byte: 3.887 µsec, 1518-bye: 4.087 µsec, 9216-byte: 3.820 µsec

Jumbo frame support

Up to 10K packet size

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

35dBA

Mean Time Between Failures (MTBF) @ 25° C

643,873 hrs (73 Years)

Documentation:

Download the Netgear GS710TUP-100NAS (PDF).
